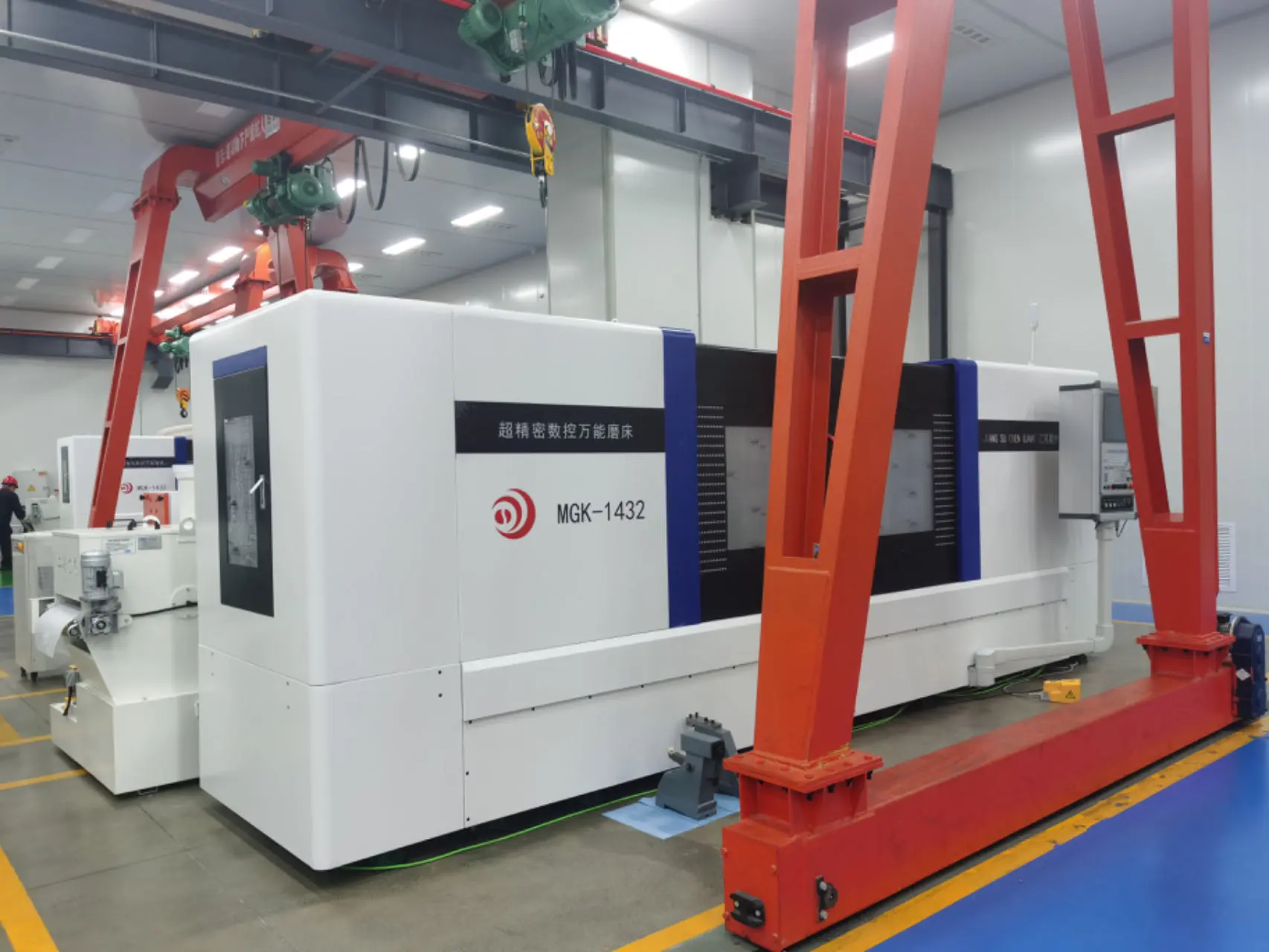

MGK-1432 Ultra-Precision CNC Grinder
One Grinder for OD, ID, Face and Non-Round Precision Work
The MGK-1432 combines hydrostatic work and wheel spindles, a granite bed and closed-loop linear drives in a compact ultra-precision platform.
The MGK-1432 is an ultra-precision CNC grinder for complex parts that need external cylindrical, internal bore, end-face and non-circular contour grinding in a single setup. It is used in aerospace, precision measuring tools and cutting tools, automotive engines and high-end machine-tool component manufacturing. The hydrostatic work spindle and follow-type hydrostatic tailstock keep runout within 0.3 μm, while a natural granite bed holds straightness within 2 μm over the full length. A torque-motor direct-drive rotary table switches between internal and external grinding heads, and the X-axis linear motor with precision linear scale delivers sub-micron full closed-loop feeds.
Request a Quote →Key Features & Working Principle
Six capabilities that make the MGK-1432 a complete ultra-precision grinding solution.
Hydrostatic Work Spindle
A torque-motor-driven hydrostatic work spindle with a rear-mounted high-resolution rotary encoder delivers ≤0.3 μm runout and precise position/speed control.
Follow-Type Hydrostatic Tailstock
The tailstock uses a follow-type hydrostatic tailstock spindle to match the headstock accuracy and support slender precision shafts.
Natural Granite Bed
A machined and hand-scraped natural granite bed provides thermal stability and straightness within 2 μm over the full length. A cast-iron bed is optional.
Hydrostatic Wheel Spindle
The external grinding wheel spindle is driven by a permanent magnet synchronous motor through a hydrostatic bearing for high torque and rotational accuracy.
Direct-Drive Rotary Table
A torque-motor direct-drive rotary table positions the internal and external grinding heads without backlash, supporting OD, ID and face grinding on one machine.
Closed-Loop Sub-Micron Feed
The X-axis uses roller guideways with damping blocks, a precision linear scale and a linear motor — or optional high-precision ball screw — for full closed-loop sub-micron positioning.
Why Choose the MGK-1432
An ultra-precision grinder reduces finishing passes and inspection rework on parts that demand micron-level geometry.
Sub-Micron Spindle Runout
Work spindle and internal wheel spindle locating-journal runout is 0.0003 mm; axial float is 0.0005–0.001 mm, giving a stable grinding baseline.
Multi-Process in One Setup
External cylinder, internal bore, end face and non-circular contours are ground without transferring the part between machines.
Thermally Stable Foundation
The natural granite bed damps vibration and resists thermal drift, maintaining straightness within 2 μm over the full travel.
Aerospace & Automotive Ready
Designed for the accuracy and repeatability required by aerospace components, automotive engine parts, precision cutting tools and measuring instruments.
Flexible Drive Options
Choose a linear motor for the highest dynamic response, or a high-precision ball screw where preferred for your maintenance environment.
Compact 1500 mm Platform
A 1500 mm between-centers distance and 250 mm center height fit a wide range of precision shafts, sleeves and tooling without a large footprint.
MGK-1432 — Technical Data
Main technical performance indicators from the factory datasheet.
| Parameter | Unit | MGK-1432 |
|---|---|---|
| Max external grinding diameter | mm | Φ320 |
| Min external grinding diameter | mm | Φ8 |
| Max internal grinding diameter | mm | Φ150 |
| Min internal grinding diameter | mm | Φ150 |
| Max internal grinding depth | mm | 150 |
| Distance between centers | mm | 1500 |
| Center height | mm | 250 |
| Headstock spindle taper | — | Morse No. 5 |
| Tailstock spindle taper | — | Morse No. 4 |
| External grinding wheel size | mm | Φ500 × 50 × Φ203 |
| External wheel worn diameter | mm | Φ300 × 50 × Φ203 |
| Work spindle max speed | rpm | 1–100 |
| Work spindle radial runout | mm | 0.0003 |
| Work spindle axial float | mm | 0.0005 |
| External wheel spindle radial runout | mm | 0.0005 |
| External wheel spindle axial float | mm | 0.001 |
| Internal wheel spindle radial runout | mm | 0.0003 |
| Internal wheel spindle axial float | mm | 0.001 |
Applications
Built for industries where micron-level geometry and surface integrity are non-negotiable.
Frequently Asked Questions
What operations can the MGK-1432 perform?
What accuracy can the spindles hold?
Why is the bed made of granite?
What is the largest part the machine can handle?
What drive options are available on the X-axis?
What information is needed for a quotation?
Configure an MGK-1432 Ultra-Precision CNC Grinder
Send us your part drawings or diameter/length/bore dimensions, material and hardness, accuracy and surface-finish requirements, annual volume, and the grinding operations you need. Our engineering team will configure the right spindle, wheel and drive options and prepare a quotation.
