Graphite Connectors Equipment

Graphite Connectors Equipment covers the CNC machinery that machines the threaded graphite connectors joining electrode sections inside an electric arc furnace — from the flagship CGK·RZ·01 flexible automatic line to the individual CNC units for scraping, turning, thread combing and slot milling. These systems chain cut-off, double-end scraping, resistivity and elastic-modulus measurement, outer-cone turning, thread combing, slot milling and weighing into one coordinated flow under industrial PLC control, with remote diagnosis keeping the line running through unmanned shifts.
Request a Quote Technical Specs ↓
8 Stations
Integrated Flow
0.001 mm
Thread Motion Control
Industrial PLC
Line Coordination
100%
Inline Inspection
All Carbon Electrode Processing Machinery Carbon Blocks Equipment Carbon Electrodes Equipment Graphite Connectors Equipment Graphite Crucibles Equipment Graphite Electrodes Equipment

Eight Stations, One Coordinated Line

The CGK·RZ·01 is built for carbon plants producing graphite electrode nipples — the most stressed component in the electrode column, where a thread off by hundredths of a millimetre can concentrate current and trigger breakage.

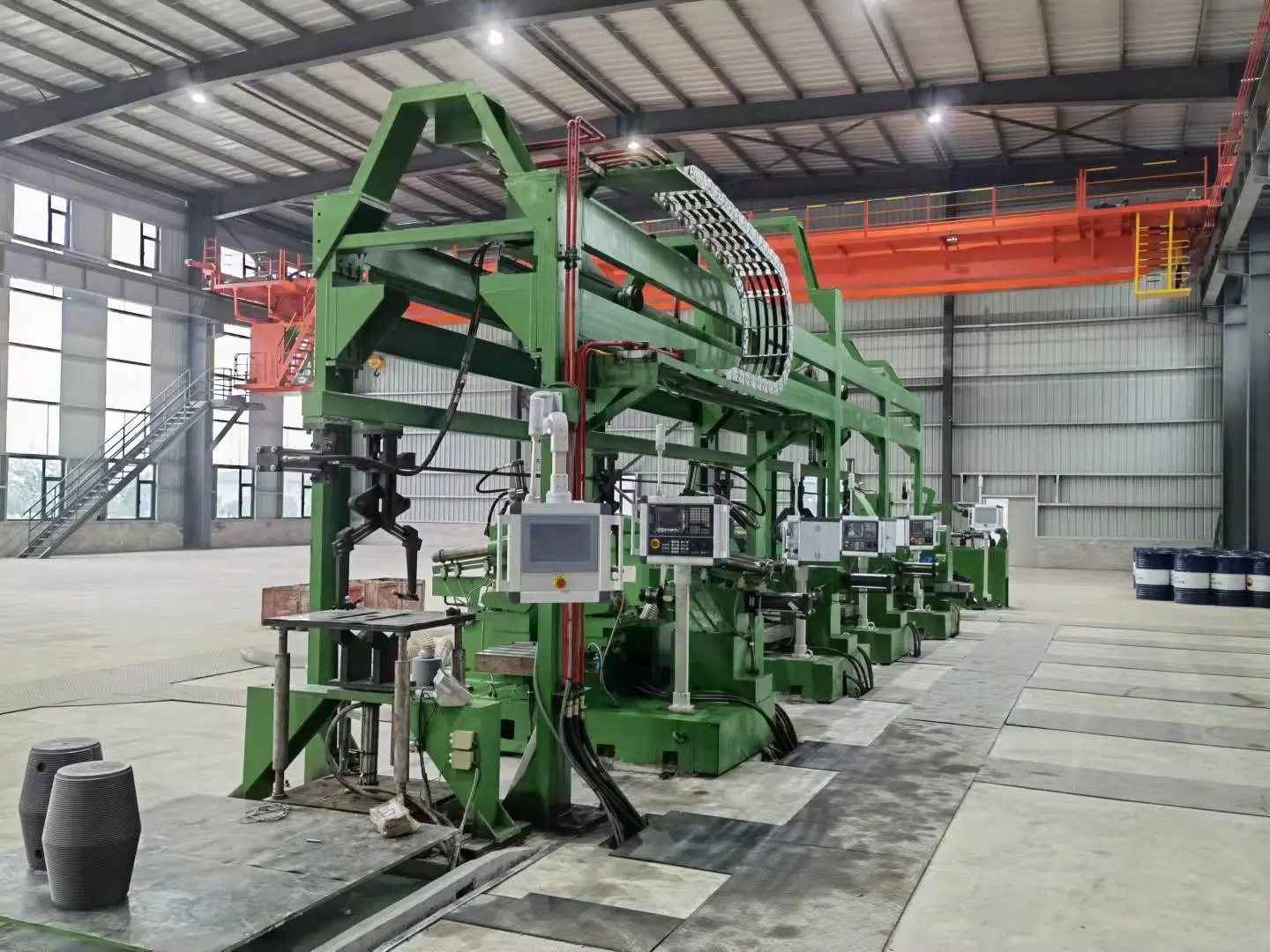

CGK·RZ·01 graphite nipple flexible automatic processing line installed in a production plant

A graphite electrode nipple is the most stressed component in the electrode column — it carries the full furnace current, sometimes above 100,000 amperes, through a threaded joint narrower than the electrode itself, and a thread off by a few hundredths of a millimetre concentrates current and triggers breakage. The CGK·RZ·01 machines nipples across eight automated stations — from cut-off through thread combing to final weighing — with inline resistivity and elastic modulus measurement that verifies every nipple before it ships, and micron-level X/Z motion control (0.001 mm pulse equivalent) that holds the thread geometry the Ideal Connection theory demands.

Request a Line Layout →

Key Features & Working Principle

Six capabilities that a collection of standalone nipple machines — a saw, a lathe, a thread mill and a manual inspection bench — cannot match.

🔗

Eight-Station CNC Networking

All eight stations — cut-off through weighing — run as one coordinated flow, so a nipple moves from raw stock to inspected, weighed, certified component with no manual hand-off.

📊

Inline Resistivity & Modulus Inspection

Every nipple is weighed and measured for resistivity and elastic modulus inline — 100% checked, not sampled — so an out-of-spec part is caught before it ships.

📡

Remote Diagnosis & Real-Time Monitoring

Remote access and live image monitoring let a technician diagnose faults and clear alarms in minutes — no waiting for an on-site service visit.

🎯

Micron-Level Thread Motion Control

X/Z axes run at a 0.001 mm pulse equivalent — one micron — holding thread profile and taper at international-advanced level, where coarser resolution bakes in pitch error.

⚙️

Flexible Specification Adaptation

Type I and Type II nipples across RP, HP and UHP grades run on one line via programmable profiles — changeover means loading a program, not re-tooling.

💡

Ideal Connection Theory Applied

Every station is tuned to maximise nipple-to-socket contact area, cutting joint resistance and the localised heating that drives oxidation and nipple failure under thermal cycling.

Why Choose Prominer CNC Connector Equipment

Against standalone machines linked by manual handling and sampling inspection, the CGK·RZ·01 wins on traceability, thread integrity and lifecycle cost.

🛡️

Eliminates Handling Damage

The line removes every manual hand-off and links quality data to each nipple by sequence — eliminating the handling damage and tracing gaps of standalone setups.

🔍

100% Inline Defect Catch

Each blank is probed for resistivity and modulus before machining and rejected if out of window, so defects never consume machining time or reach a customer.

🔥

Breaks the Joint-Resistance Loop

A 0.1 mΩ joint-resistance rise at 100 kA dissipates ~1 kW of heat — micron-level motion control holds the geometry that breaks that failure loop.

🌙

Runs Unmanned Shifts

Remote diagnosis and live image monitoring resolve alarms and tune tool changes from trend data, keeping the line productive through unmanned shifts.

💰

Lower Total Cost of Ownership

A cheaper standalone setup hides labour, scrap and rework costs the integrated line eliminates — over 3–5 years, total cost favours the line.

📜

Export-Grade Traceability

Automatic recording compiles a printable certificate linking each nipple to its raw lot, resistivity, modulus and dimensions — meeting international steelmakers' traceability rules.

Flagship Configuration — CGK·RZ·01 Technical Data

Main technical performance indicators from the factory datasheet.

Parameter Unit Type I Type II
Machined Nipple Diameter mm Φ120–Φ431 (for Φ200–Φ800 mm electrode) Φ241–Φ488 (for Φ450–Φ900 mm electrode)
Machined Nipple Length mm 177–635 (for Φ200–Φ800 mm electrode) 241–685 (for Φ450–Φ900 mm electrode)
Single-Thread Pitch Error mm ±0.015 ±0.015
Cumulative Thread Pitch Error mm ±0.025 / 150 mm ±0.025 / 150 mm
Thread Hole Taper Tolerance ″ ±20 ±20
Thread Half-Angle Error — 30° ±10′ 30° ±10′
Double-End Thread Four-Point Deviation mm ≤0.04 ≤0.04
Effective Diameter Error mm ≤0.05 ≤0.05
Z-Axis Pulse Equivalent mm/pulse 0.001 0.001
X-Axis Pulse Equivalent mm/pulse 0.001 0.001
Cycle Time per Piece min/pc Large 3 / small–medium 2 Large 5 / small–medium 3

Materials & Industries Served

Designed for carbon plants supplying graphite electrode nipples to steelmakers running electric arc furnaces — where joint integrity is a production and safety determinant.

🏭
UHP / HP / RP Electrode Nipple Machining
EAF steelmaking · Current densities > 25 A/cm²
🔗
Electrode Production Line Integration
Body line + nipple line · Matched-set scheduling
🌍
Export & International Supply
Inline traceability certificates
📐
Type I & Type II Nipple Production
1:3 & 1:6 tapers · Program-call changeover
⚡
Graphite Electrode Joint Manufacturing
Threaded connectors · Nipple-socket fit
🏗️
Standalone Nipple Supply Plants
Dedicated nipple output · Multi-customer specs

Frequently Asked Questions

What is a graphite nipple auto processing line?
It is an integrated multi-station CNC system that produces the threaded connectors joining graphite electrode sections in electric arc furnaces, chaining cut-off, scraping, measurement, turning, thread combing, slot milling and weighing into one automated sequence under industrial PLC line control. Unlike standalone machines linked by manual handling, it machines, inspects and records quality data for every nipple without operator intervention between stations.
What stations does the CGK·RZ·01 include?

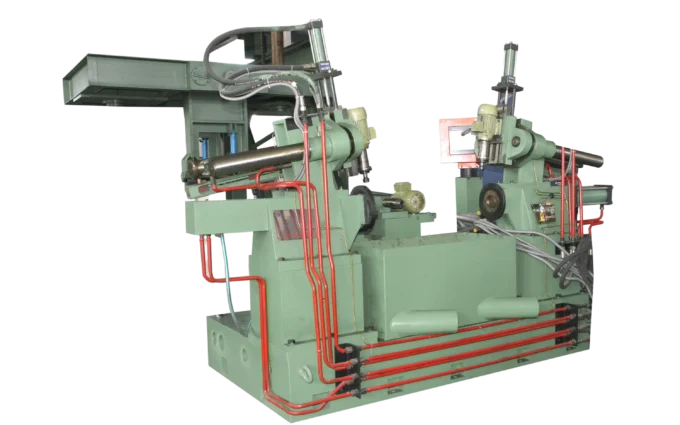

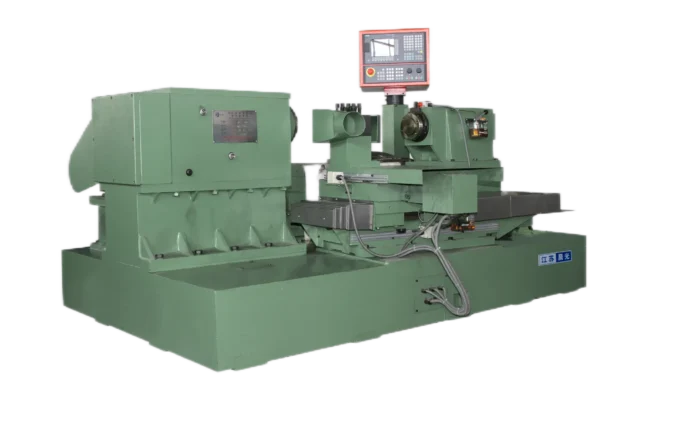

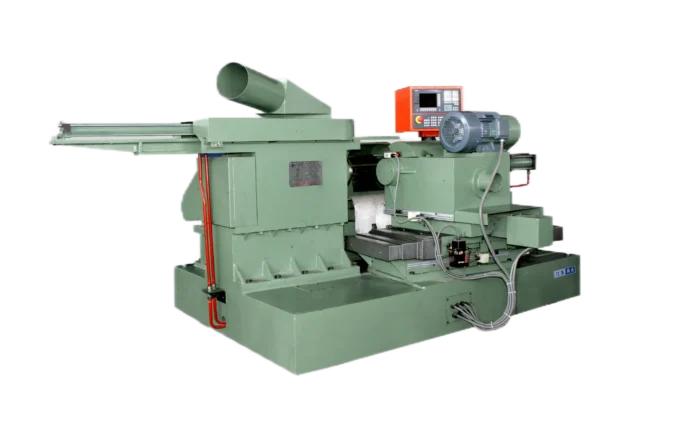

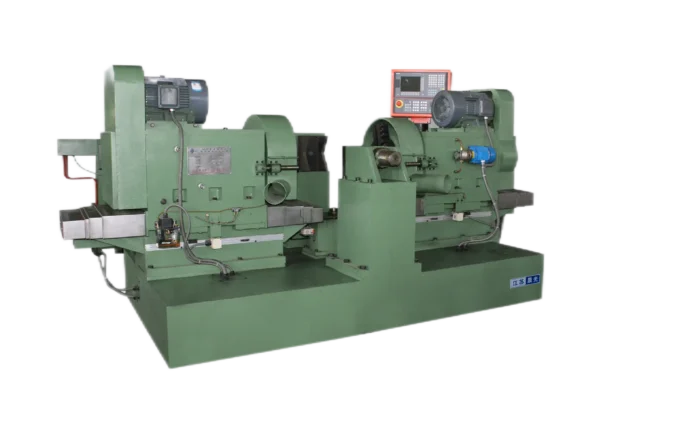

The CGK·RZ·01 includes eight stations: cut-off, double-end scraping and center-hole drilling, resistivity and elastic modulus measurement, double outer-cone turning, double thread combing, slot milling and bolt-hole drilling, weighing, and an automatic conveyor moving each nipple between stations under industrial PLC line control. Each station is a CNC machine tool that can be independently debugged and commissioned before the full line is synchronised for production.
How does inline resistivity and elastic modulus measurement work?
The inline station probes each nipple blank before machining, recording electrical resistivity in microhm-metres and elastic modulus in gigapascals to verify the material meets the target electrode grade, whether RP, HP or UHP. Any blank outside the specification window is flagged for rejection before it consumes machining time, and the measurement data is logged for every nipple in the production record.
What is the pulse equivalent and why does it matter for thread precision?
The pulse equivalent is the minimum displacement increment each CNC axis can execute. The CGK·RZ·01's X and Z axes operate at 0.001 mm, one micron, so the thread profile, taper angle and major diameter hold tolerance at a level matched by few graphite nipple machining systems. Thread precision governs the nipple-to-electrode contact area, and the contact area governs joint resistance, so coarser resolution produces pitch error no gauge can correct after cutting.
What nipple types and specifications can the line process?
The line processes Type I nipples with a 1:3 taper ratio and Type II nipples with a 1:6 taper ratio, across RP, HP and UHP electrode grades, with programmable part profiles that adapt machining parameters to each specification without mechanical re-tooling. A changeover between nipple types means loading the appropriate part program at each station and adjusting fixturing, not rebuilding the line or dedicating a separate machine.
How do I specify and order a CGK·RZ·01?
Send us your nipple specifications — type, taper ratio, diameter, length and thread pitch (3 TPI or 4 TPI) — your electrode grades (RP, HP or UHP), your resistivity and elastic modulus targets, your daily throughput, your quality certificate requirements, and your workshop layout including floor space and network infrastructure for remote monitoring. Our engineering team returns a configuration with confirmed specifications and a quotation locked to your nipple drawings and grade requirements, with a configuration drawing before any build starts.

Configure a CGK·RZ·01 for Your Nipple Plant

Send us your nipple specifications, electrode grades, resistivity and modulus targets, daily throughput, quality certificate requirements, and workshop layout — including floor space, power supply and network infrastructure for remote monitoring. Our engineering team will prepare a line layout with confirmed specifications, cycle-time estimate and quotation.
